Best way to retain product’s freshness and preserve quality by wrapping harvested materials such as silage , pulp, sawdust, all roughage feeds etc.. in range of 100 – 500 – 1000 kg . Our machines provide a significant contribution in the feeding animals by preserving materials’ longtime freshness ( if bale protected under appropriate conditions, protect its freshness long times and productivity so that the expenses stemming from animal feed is minimized.

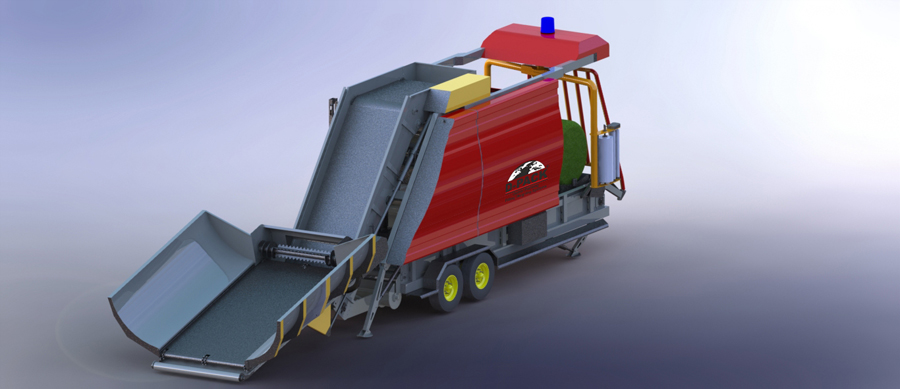

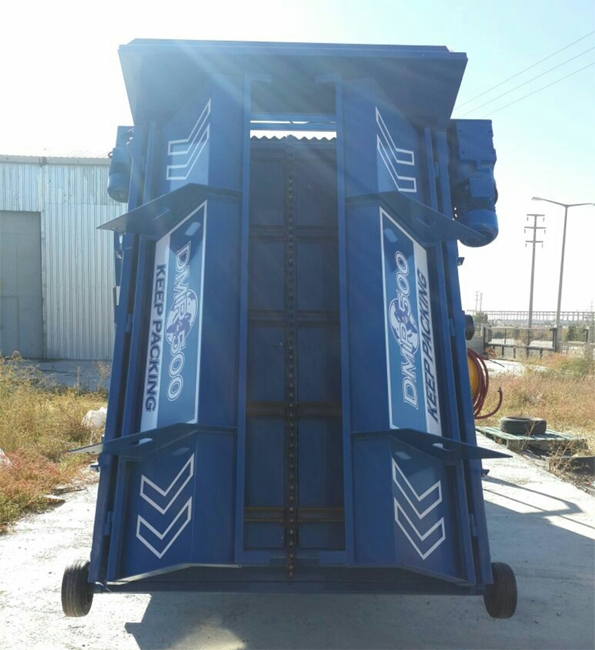

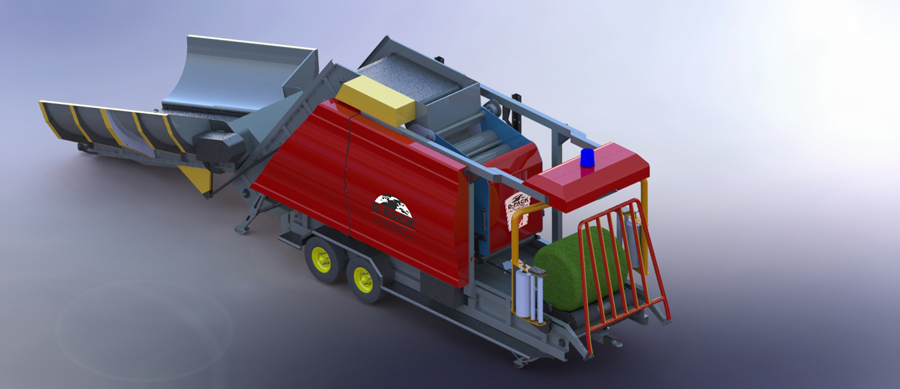

- Easy loaded and folding bunker submit easy material loading without to much labour.
- Speed adjustable conveyor transfers and mix materials to the press room and protect blockage in the throat of the press room.
- Improved press room provide optimum press with rubber belt.
- Net wrapping unit help to protect of bale shapes by covering it by net.
- Material recycling unit helps to transfer the materials, which fall out from press room or bale, to press room again.
- Bottom Conveyor belt transfer the bale from bale room to strech wrapping unit.
- Double arm strech wrapping unit provide optimum wrapping to protect the materials from external factors.
| DMR 100 | DMR 500 | DMR 1000 | |
| Capacity /Bales Per Hour | 30-35 Bales/h | 35-45 Bales/h | 35-45 Bales/h |
| Bale Weight | 80-140 Kg | 400-550 Kg | 750-1000 Kg |
| Power Consumption | 15 kw/h | 35 kw/h | 50 kw/h |
| Bale Diameter | 55x60 cm | 90x100 cm | 110x120 cm |
| Control System | PLC | PLC | PLC |
| Pressing Unit | Rubber Belt | Rubber Belt | Rubber Belt |
| Wehicle Connection | Drawbar | Drawbar | Drawbar |
| Stretch & Net Width | 35x70 cm | 50x100 cm | 75x120 cm |
| Strech & Net Control | Automatic | Automatic | Automatic |
| Height / Widht | 280x200 cm | 330x240 cm | 420x2600 cm |
| Weight | 5200 kg | 9300 kg | 12500 kg |
| Working Lenght | 900 cm | 1050 cm | 1200 cm |
| Transport Lenght | 650 cm | 750 cm | 850 cm |
